Artec Spider II

Capture intricate details, sharp edges, fine lines, and complex surfaces with exceptional precision. Artec Spider II combines ultra-high resolution, full-color capture, fast scanning, and target-free technology for professional 3D digitization.

Brochure

THE ULTIMATE SCANNER FOR ultimate DETAIL

Artec Spider II is designed for professionals who need exceptional detail, accurate geometry, and realistic color capture with no hard size limits. When it comes to delivering superb detail in a versatile handheld form factor, Spider II is peerless.

UNPARALLELeD resolution

Blue-light technology delivers ultra-high resolution and full-color capture for highly detailed 3D models.

TARGET-FREE TRACKING

Scan without targets, reducing preparation time and making the scanning process faster and easier.

REALISTIC COLOR

Capture geometry and texture together for true-to-life 3D models with rich color information.

FAST & INTUITIVE

Capture at up to 30 FPS with an enhanced field of view for a smoother and more efficient workflow.

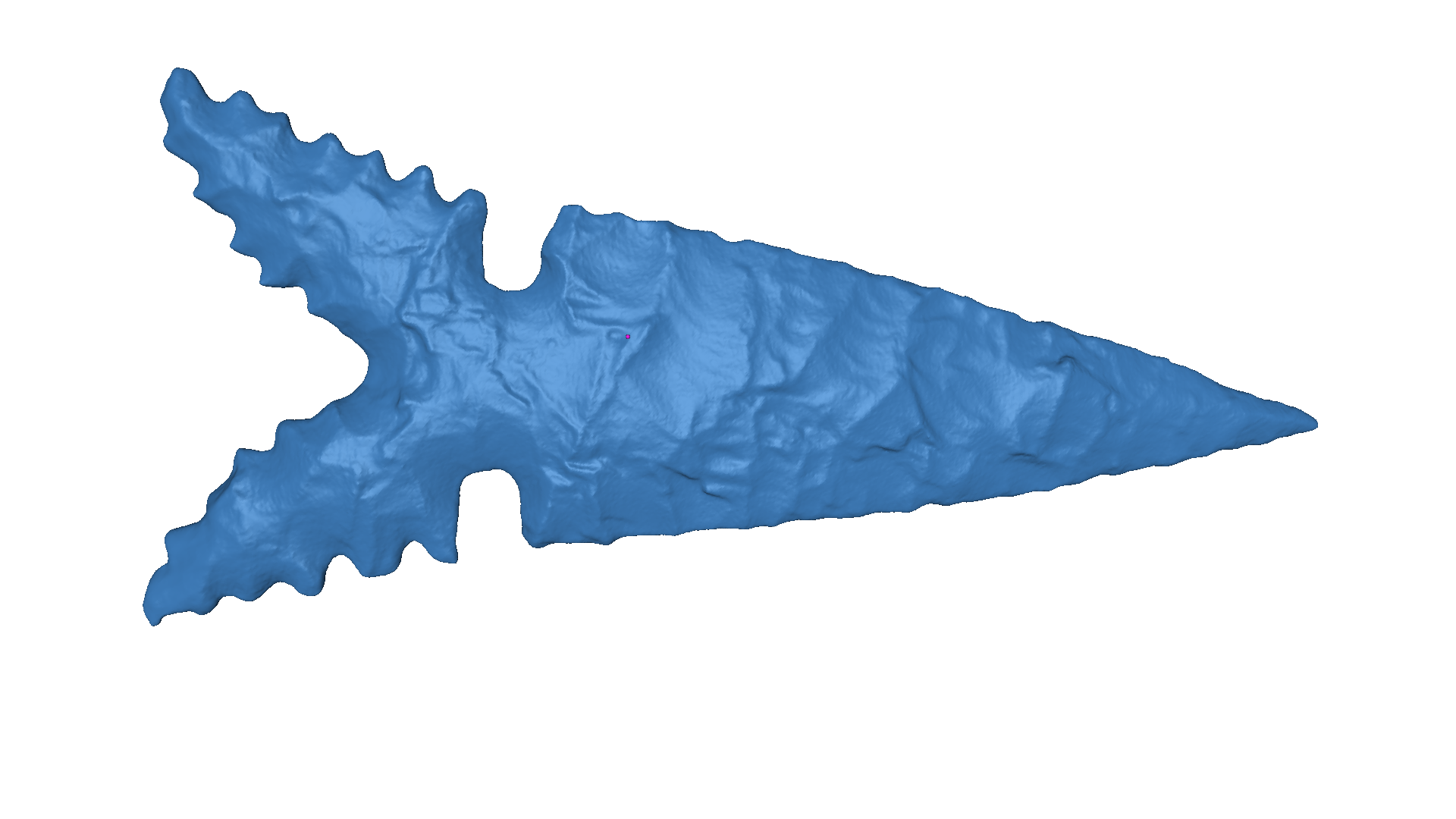

a 3D scan of a small lithic or projectile point scanned in exquisite detail using the Artec Spider II

A tiny projectile point scanned with the Spider II

EXCEPTIONAL DETAIL.

Superb Tracking.

PROFESSIONAL RESULTS.

Spider II is built for demanding applications where resolution and detail matter. Its blue-light technology captures intricate geometry, sharp edges, fine lines, and complex surfaces with impressive accuracy.

With a 30 FPS capture rate and enhanced field of view, scanning remains fast, intuitive, and comfortable.

Tech specs

Resolution & Accuracy
Resolution, up to0.05 mm
Accuracy, up to0.05 mm
3D Accuracy Over Distance, up to0.05 mm + 0.3 mm/m
Scanning Range
Size of Scanning Object/AreaS–M
Working Distance0.19 - 0.3 m
Volume Capture Zone1,800 cm³
Linear FOV H×W @ Closest Range128 × 104 mm
Linear FOV H×W @ Furthest Range171 × 152 mm
Depth of Field110 mm
Speed
3D Reconstruction Rate, up to30 fps
Data Acquisition Speed, up to8 mln points/s
Scanning Algorithms
Target-Free TechnologyYes
Hybrid Geometry & Texture TrackingYes
Texture
Texture Resolution5 MP
Colors24 bpp
Hardware
Scanner TypeHandheld
Power SourceAC / DC power adapter, DC 24V
InterfaceCompatible with Thunderbolt 4 hosts
3D Structured-Light Source450 nm LED
Texture Illumination SourceWhite LED CRI > 95, 4000 K
Dimensions H×D×W187 × 156 × 118 mm
Weight0.95 kg / 2.1 lbs
Warranty2 years
Compatibility
Supported OSWindows 10 (x64), Windows 11
Recommended Computer13th/14th Gen Intel Core i7 or i9, RTX 4070 8 GB
Minimum Computer12th Gen Intel Core i9, RTX 4060 8 GB
Output Formats
3D MeshOBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CADSTEP, IGES, X_T
MeasurementsCSV, DXF, XML

  • Spider II is designed as an industry-leading ultra-high-resolution handheld scanner with 0.05 mm accuracy and resolution, target-free scanning, and full-color capture.

  • Spider II is designed for S–M-sized objects, while also being capable of capturing larger detailed parts such as engine components.

  • No. Spider II features target-free scanning, helping simplify setup and reduce preparation time.

  • Yes. Spider II combines geometry and color tracking to produce detailed 3D models with realistic color.

  • Artec's technology is designed to help capture difficult surfaces, including black and shiny objects.

FAQ
