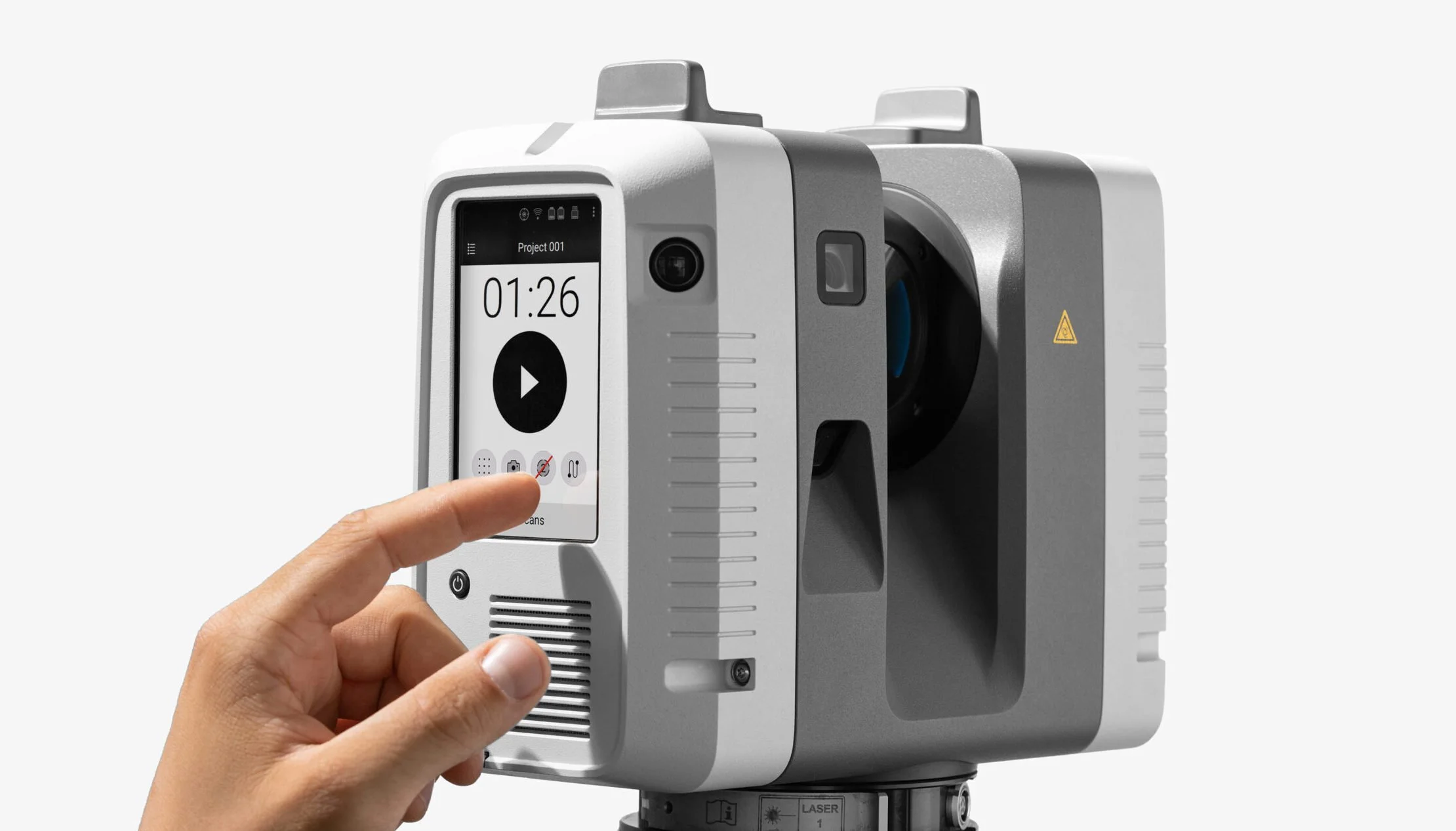

A person pressing buttons on a modern laser measurement device with a digital display showing a timer. The device is gray and white with multiple icons and a camera lens.

Artec Ray II

Capture massive objects, environments, and complex scenes with professional-grade accuracy from up to 130 meters away. Artec Ray II combines long-range LiDAR scanning, exceptional speed, wireless operation, and high-accuracy data capture.

Brochure

Overview

THE POWER OF LONG-RANGE 3D SCANNING

Artec Ray II is designed for capturing large to massive objects, spaces, and environments quickly and accurately.

From aircraft and wind turbines to bridges, factory floors, forensic scenes, and archaeological sites, Ray II delivers high-quality 3D data without the complexity of traditional large-scale scanning workflows.

LIGHTNING-FAST SCANNING

Capture up to 2 million points per second, with a full dome captured at the highest 3 mm resolution in just 1 minute 42 seconds.

METROLOGY-GRADE PRECISION

Achieve 1.9 mm 3D point accuracy at 10 meters, with highly accurate angular and range measurements.

LONG-RANGE CAPTURE

Capture objects and environments from 0.5 to 130 meters, giving you the flexibility to scan massive spaces from a safe and practical distance.

WIRELESS & PORTABLE

With onboard controls, remote operation, and a lightweight 5 kg setup including tripod, Ray II can be deployed wherever your project takes you.

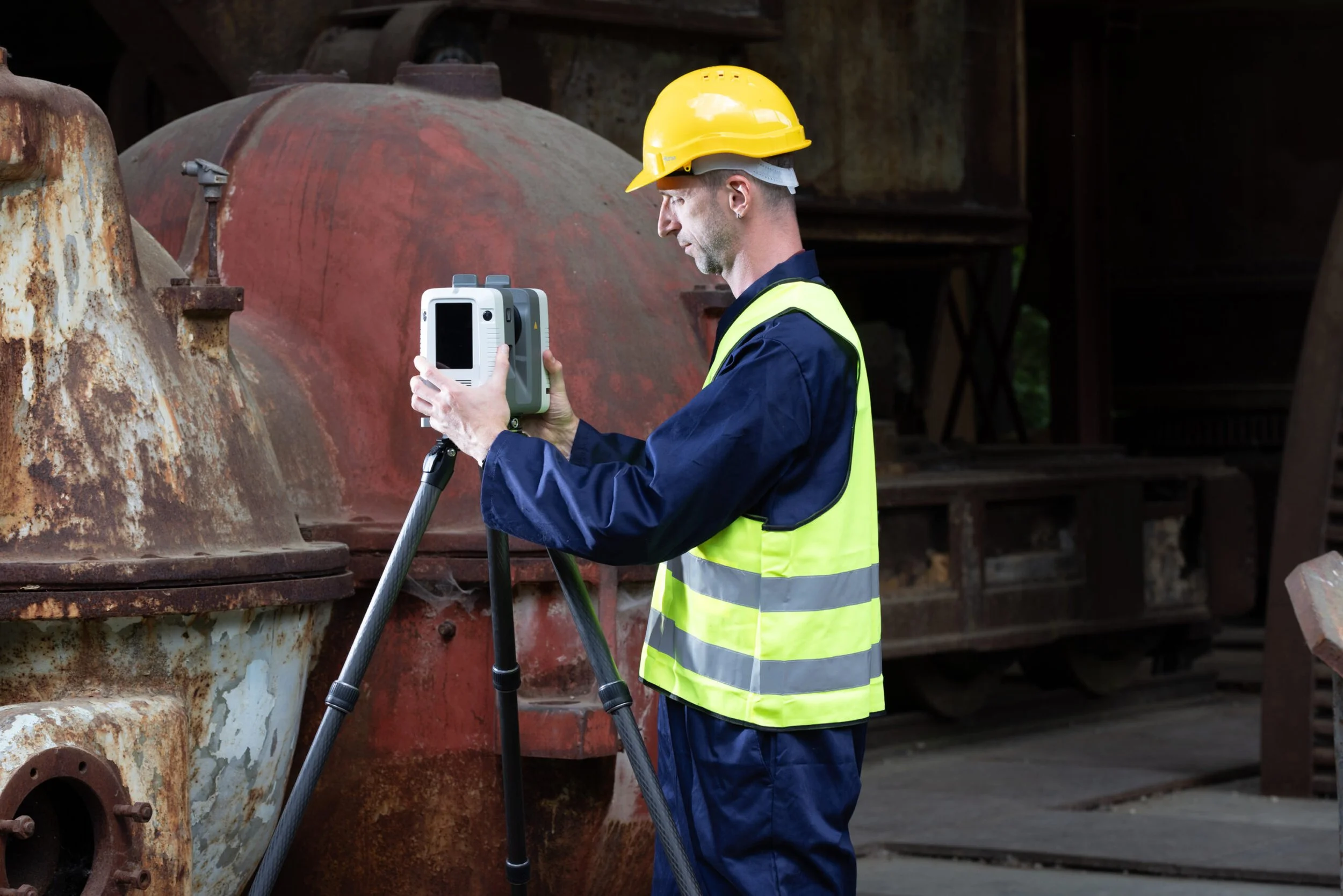

A worker scanning tanks with the Artec Ray II LiDAR scanner

LIGHTNING-FAST SCANNING. UNCOMPROMISED ACCURACY.

Ray II captures data at up to 2 million points per second, allowing large objects and environments to be digitized in remarkably short periods.

At 3 mm resolution, a full dome can be captured in just 1 minute 42 seconds without texture or 2 minutes 42 seconds with texture.

A network of pipes modeled in CAD from combined scan data from the Artec Leo and Artec Ray II

A Ray II scan combined with Leo scans

BUILT FOR DEMANDING WORKFLOWS.

Ray II combines high 3D point accuracy with best-in-class angular accuracy to deliver dependable data for professional applications.

Tech specs

Accuracy & Resolution
3D Point Accuracy1.9 mm @ 10 m / 2.9 mm @ 20 m / 5.3 mm @ 40 m
Angular Accuracy18″ (0.87 mm @ 10 m)
Range Accuracy1.0 mm + 10 ppm
Resolution3 / 6 / 12 mm @ 10 m
Range Noise*, **0.4 mm @ 10 m / 0.5 mm @ 20 m
Field of View & Range
Field of View360° (horizontal) / 300° (vertical)
Range0.5 - 130 m
Speed
3D Capture RateUp to 2,000,000 pts/sec
Scan Time w/o Texture @ 10 m1 min 42 s @ 3 mm / 51 s @ 6 mm / 26 s @ 12 mm
Scan Time w/ Texture @ 10 m2 min 42 s @ 3 mm / 1 min 51 s @ 6 mm / 1 min 26 s @ 12 mm
Color Capture
Camera36 MP 3-camera system, 432 MPx raw, calibrated 360°×300° spherical image
HDRAutomatic, 5 brackets
Operation
On ScannerTouchscreen, full-color WVGA display, 480 × 800 px
Mobile DevicesArtec Remote app (iOS/Android): remote scan control, settings, launch scanning
Algorithms
Real-Time RegistrationAutomatic point cloud alignment via Visual Inertial System (VIS)
Automatic Moving-Object RemovalDeletes moving-object data via Double Scan
Check & AdjustField procedure for targetless angular checking
Navigation Sensors
Visual Inertial SystemsVideo-enhanced inertial system tracking scanner position between setups in real time
TiltIMU-based, 18″ accuracy, ±10° inclination
Geolocation SensorsAltimeter, compass, GNSS
Interfaces
WirelessIntegrated wireless LAN (802.11 b/g/n)
Data StorageAS256, 256 GB exchangeable USB 3.0 flash drive
Hardware Specifications
Scanning TechnologyTime-of-flight, Waveform Digitizing (WFD)
Laser Class1 (IEC 60825-1:2014), 1550 nm (invisible)
Dimensions120 × 240 × 230 mm / 4.7″ × 9.4″ × 9.1″
Weight5.35 kg / 11.7 lbs (without batteries)
Mounting Mechanism5/8″ stub on carbon tripod or tripod adapter
Power
Internal Battery2 × AEB364 Li-Ion, up to 4 hrs, 340 g each
ExternalGEV282 AC adapter
Environmental
Operating Temperature-5° to +40°C
Storage Temperature-40° to +70°C
Operating Low Temperatures***-10° to +40°C
Dust/Humidity****IP54 (IEC 60529)

All accuracy specifications are on a level of confidence of 68% according to the Guide of the Expression of Uncertainty in Measurement (JCGM100:2008) unless otherwise noted.

* At 89% albedo

** For single-shot measurements

*** Extended low temperature operation is possible to -10°C if internal temperature is at or above -5°C when powered on. For extended low temperature measurement, it is recommended that QA procedures are followed.

**** For upright and upside down setups with a +/- 15° inclination

  • Ray II can capture objects and environments from 0.5 up to 130 meters away.

  • Ray II provides 1.9 mm 3D point accuracy at 10 meters, with 2.9 mm at 20 meters and 5.3 mm at 40 meters.

  • No. Ray II is designed for target-free scanning.
