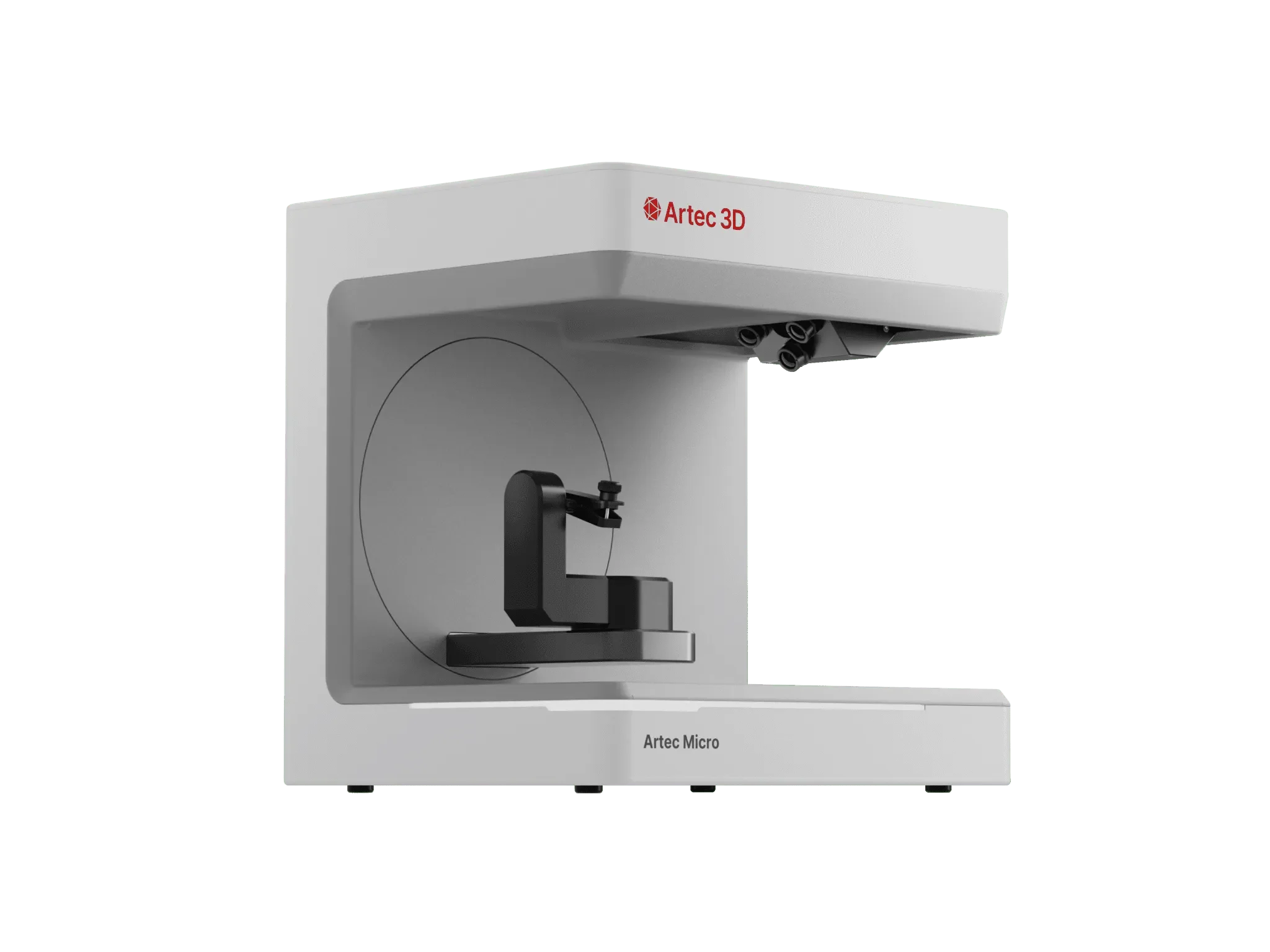

The Artec Micro II, metrology grade automated 3D scanner

ARTEC MICRO II

Digitize small and intricate objects with exceptional precision using Artec Micro II. Its fully automated workflow, 5-micron accuracy, and compact desktop design make professional reverse engineering and quality inspection remarkably simple.

Brochure

Artec Micro II is a fully automated desktop 3D scanner designed for highly accurate digitization of small parts.

Simply place your object inside the scanner, start the scan, and let Micro II automatically position and scan the object from the ideal trajectory.

PRECISION SCANNING RIGHT ON YOUR DESKTOP

  • METROLOGY GRADE ACCURACY

  • ISO certified

  • ONE-CLICK operation

  • TARGET-FREE SCANNING

  • FULL-COLOR CAPTURE

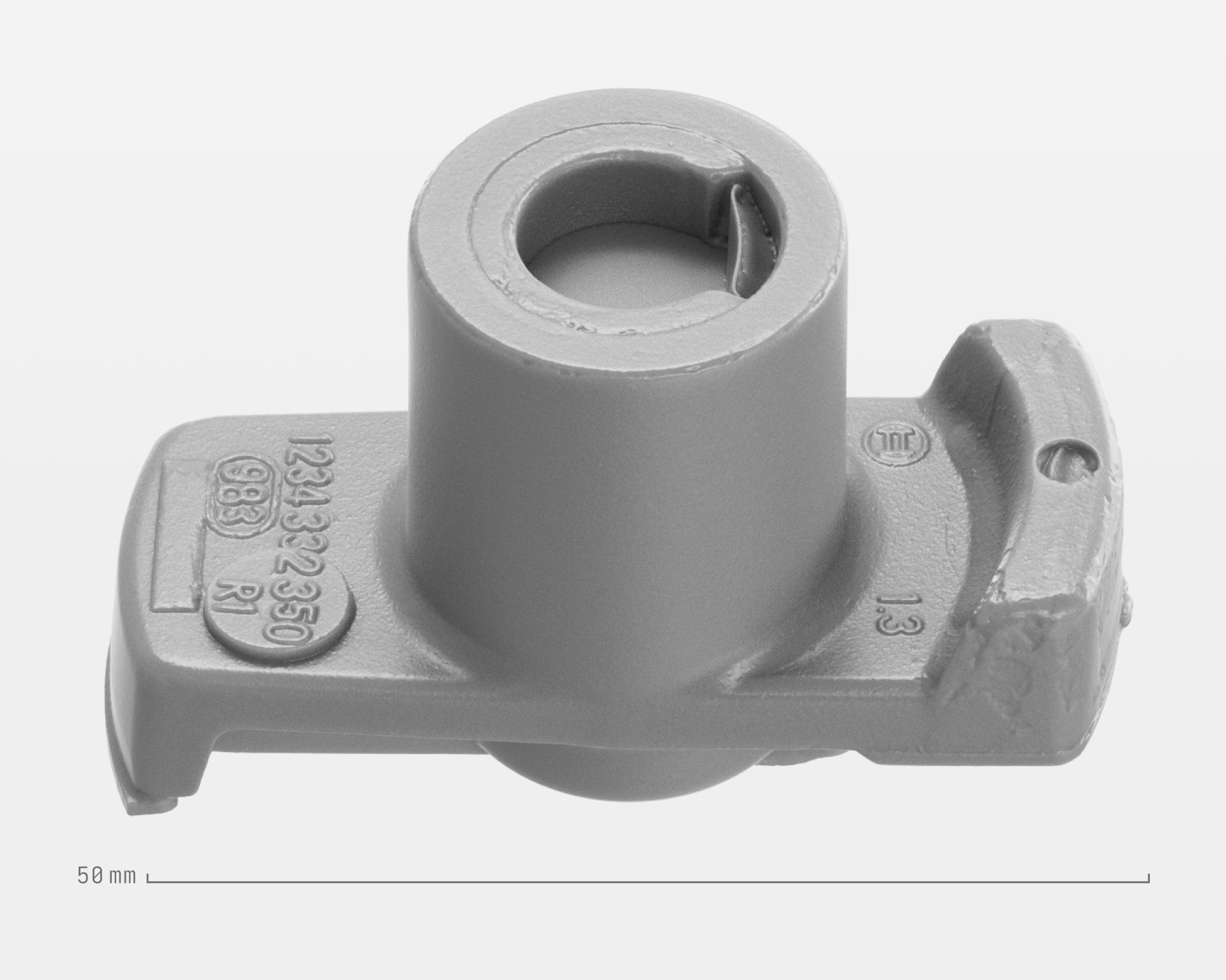

Close-up of a small detailed part scanned in super-high resolution with the Artec Micro II

Detail oriented

The Micro II delivers a phenomenal level of Resolution to match its Exceptional Accuracy.

Tech specs

Accuracy
3D Point Accuracy5 microns, 2-micron repeatability
Accuracy CertificationISO12836
Field of View
Volume Capture4,700 cm³
Field of ViewØ 20 × 15 cm
Scan System3-axis
Resolution
Cameras4 × 13 MPX resolution cameras
3D Resolution40 microns
Algorithms
Smart Scanning ModeYes
Color
Ability to Capture TextureScanner native & phototexture
Colors24 bpp
Speed
Data Acquisition Speed1 mln points/s
Light Source
3D Light SourceRGB LED
2D Light SourceRGB LED
Hardware
InterfaceUSB 3.0
Dimensions396 × 405 × 337 mm
Weight12 kg
Computer Requirements
Supported OSWindows 10 (x64), Windows 11
Recommended ComputerIntel Core i7 or i9, 64+ GB RAM, GPU with 3+ GB VRAM, CUDA 3.5+
Minimum ComputerIntel Core i5, i7, or i9, 32 GB RAM, GPU with 2 GB VRAM
Warranty2 years
Output Formats
3D MeshOBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CADSTEP, IGES, X_T
MeasurementsCSV, DXF, XML

FAQ

  • No. While Artec Studio does allow more advanced users to create their own custom scanning paths, there are multiple pre-defined one-click workflows that are optimized for different part sizes and relative complexity

  • Micro II can scan objects up to 20 × 20 × 15 cm or approximately 7.9 × 7.9 × 5.9 inches

  • The Micro II has an accuracy of 5 microns or 0.00019 inches

  • For very delicate objects that cannot be fixed in place via any method without risking damage, there is a rotation only mode for the Micro II that prevents the platform from inclining
