Metrology Kits

Metrology Kits can be paired with Artec Scanners to achieve far greater dimensional accuracy than would be possible with a scanner alone.

Brochure

Micron-Level accuracy

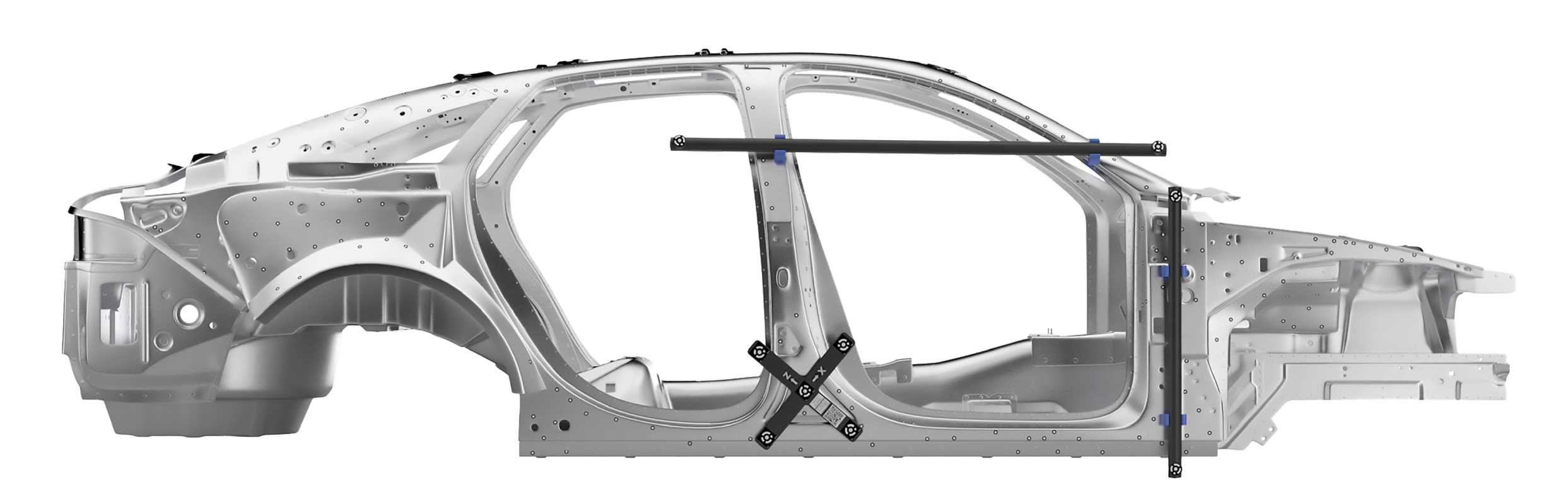

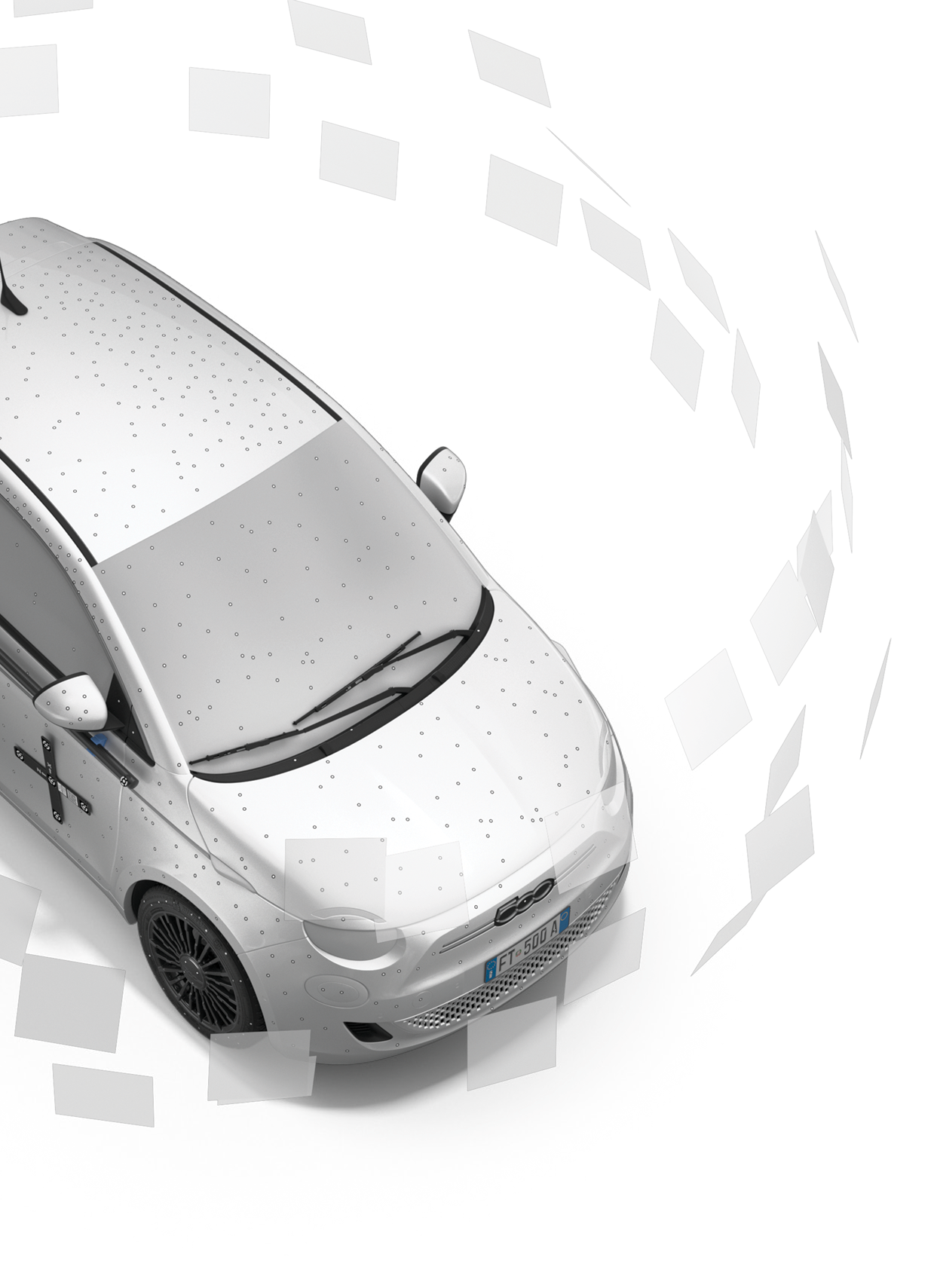

Artec Metrology Kits can deliver 80 micron accuracy (0.080 mm) over an average car length, satisfying even the most rigorous accuracy requirements on large parts.

flexible scalability

In the real world, most users have a mix of high and low tolerance applications, so traditional target-based scanners that require time-consuming application of targets on every part can be a sub-optimal compromise. Metrology kits resolve this dilemma by dramatically enhancing the accuracy of scanners like the Artec Leo without sacrificing the broad versatility that makes them attractive in the first place. This modular approach makes Artec scanners highly future-proof as your applications expand, and delivers the best of both worlds: Bring out the Metrology Kit when you’re chasing microns, and use the scanner standalone when you’re not.

Tech specs

Artec Metrology KitProfessionalEntry
Accuracy
Length Measurement Accuracy | MPE*0.015 mm + 0.015 mm × Lengthdiagonal [m]0.025 mm + 0.025 mm × Lengthdiagonal [m]
Point-Based Measurement Accuracy0.002 mm + 0.005 mm/m (RMS)
0.003 mm + 0.007 mm/m (3 sigma)0.004 mm + 0.006 mm/m (RMS)
0.005 mm + 0.009 mm/m (3 sigma)
Volumetric Accuracy with 3D Scanners
Artec Leo / Artec Eva0.115 mm + 0.015 mm/m0.125 mm + 0.025 mm/m
Artec Space Spider0.065 mm + 0.015 mm/m0.075 mm + 0.025 mm/m
Camera
Sensor UnitCanon EOS RCanon EOS 6D
Lens28 mm AICON metric wide-angle lens28 mm AICON metric wide-angle lens
Camera Resolution30.3 MP (6,720 × 4,480)20.2 MP (5,472 × 3,648)
Field of View (FoV)65 × 46°65 × 46°
IlluminationWhite-light flashWhite-light flash
SpeedUp to 8 images/sUp to 4 images/s
ViewfinderDiopterDiopter
Wireless Data TransferOptionalNot supported
Power SupplyLi-ion batteryLi-ion battery

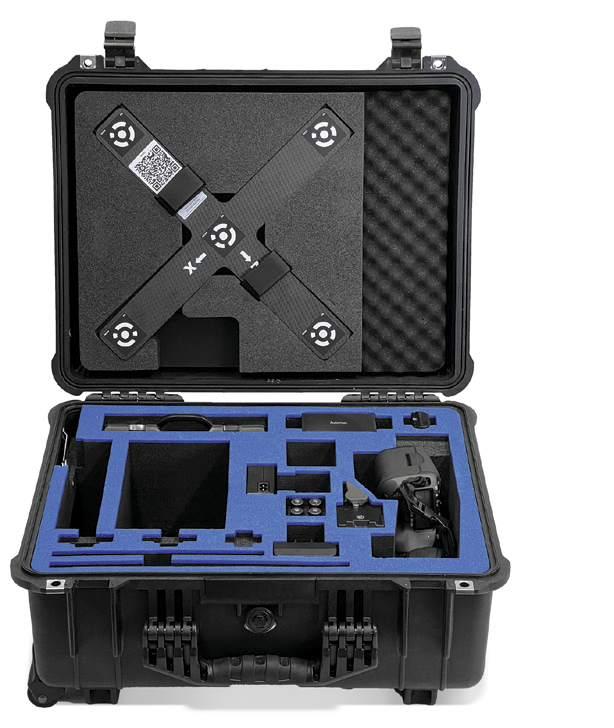

 ProfessionalEntry
Packaging
Dimensions215 × 120 × 140 mm245 × 110 × 150 mm
Transportation Box Dimensions520 × 430 × 250 mm870 × 230 × 170 mm
Sensor Weight1.7 kg / 3.7 lb1.4 kg / 3 lb
Transportation Box Weight, incl. SystemApprox. 12 kg / 26.5 lbApprox. 7.7 kg / 17 lb
StorageRobust case with trolleyRobust case
Other Specs
Recommended Operating Temperature+5 to +45°C+5 to +45°C
ConformityCE, RoHSCE, RoHS
Calibration & CertificationDAkkS certificate for the complete measuring system incl. scale bars and sensor

DAkkS-calibrated scale bars: 1 × 1,430 mm, 1 × 830 mm

VDI 2634 page 1 certified systemDAkkS certificate for the complete measuring system incl. scale bars and sensor

Factory-calibrated scale cross 800

Opt. VDI 2634 page 1 certified system

*MPE (Maximum Permissible Error) of length measurement error, based on VDI/VDE 2634 part 1: defined as the maximum permissible deviation of a measured length, which is located between two measuring points, signalized with photogrammetric targets, in the entire measuring volume of the measuring object, regardless of the position and orientation.

FAQ

  • No. They can create coordinate clouds on their own, which can be useful in their own rite, but they cannot reconstruct actual surfaces without a 3D scanner

  • No. Both Kits include the ideal camera. The Professional kit comes with a mirrorless Canon EOS R and the Entry kit comes with a Canon EOS 6D

  • Yes. Even without a scanner, the Kit itself can support various applications such as general dimension measurements between targets, deformation analysis, and flatness inspection.
